American DJ

collapse expand iconDescription

The Hydro Spot 1 is a 200W LED spotlight that's a powerhouse fixture designed to illuminate a wide range of shows and events. With a 50,000-hour LED engine, motorized zoom and focus and frost and prism effects, users have full control over the beam for any application.

Precision Zoom and Focus for Beam Shaping

The motorized 12-23 degree zoom and beam focus allow for fine-tuning the beam to spotlight performers or wash an entire stage. The beam can be shaped from a narrow spotlight to a wider wash, with the ability to soften the edges using the included frost filters for a diffused glow.

Creative Lighting Effects for Dynamic Shows

Two rotating prism effects, a 5-facet linear and a 6-facet circular, break up the light into prismatic patterns that move and change with the rotation speed. When combined with the variable strobe, the prism effects can create a disco lighting show for high-energy events. The two color wheels offer 16 saturated colors plus white to color the beam or prism effects.

Power and Control for any Application

The Hydro Spot 1 has a long 50,000-hour life for both temporary and permanent installations. With 630 degrees of pan and 270 degrees of tilt, the beam can reach nearly any position. Three DMX channel modes (19, 22 or 26 channels), an LCD display and wired digital communication provide programming options for any level of user.

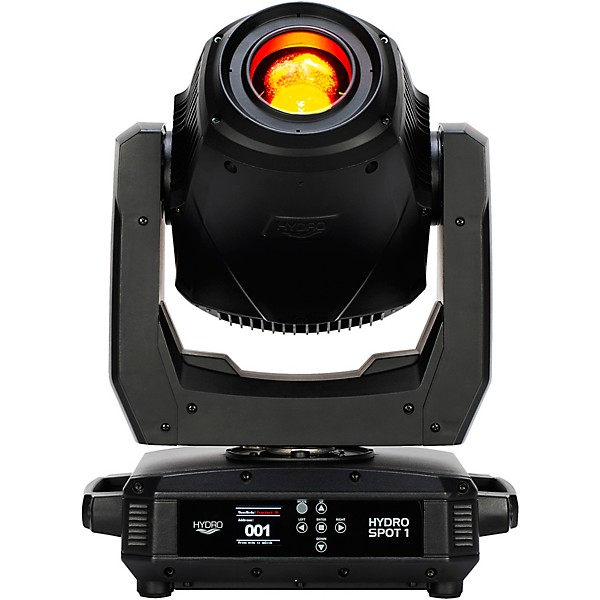

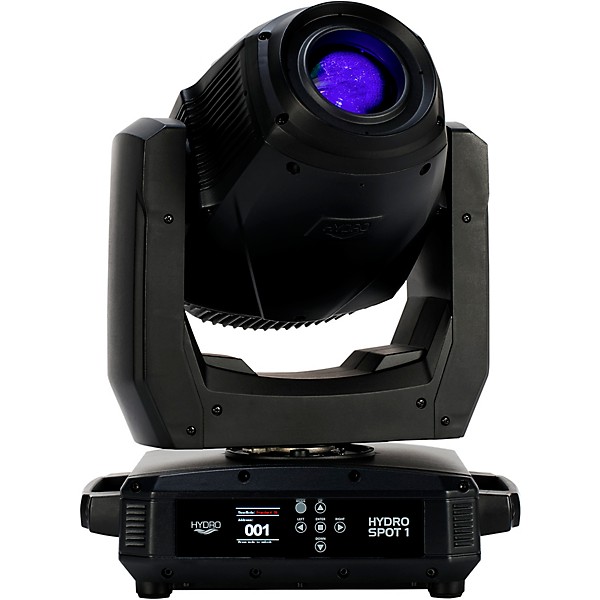

American DJ Hydro Spot 1 IP65 200 W Moving Head LED Fixture
American DJ Hydro Spot 1 IP65 200 W Moving Head LED Fixture
American DJ Hydro Spot 1 IP65 200 W Moving Head LED Fixture

collapse expand iconFeatures

  • Motorized Focus
  • Motorized Zoom: 12° ~ 23°
  • 2 Frost Filters (Heavy and Medium)
  • 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
  • 0-100% smooth dimming
  • Various strobe speeds
  • 2 cooling fans
  • Omega Bracket included
  • 1.83M locking power cable included
  • ETL Approved / CE Certified
  • IP65 with Marine Coated Exterior and conformal coated PCBs
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

collapse expand iconSpecs

Light Source
  • 200W Cool White LED Engine (50,000 hr.)
Color Wheels
  • (2) Color wheels
  • 8 dichroic colors + white on each wheel (includes CTO, CTB and UV filters)
GOBO Wheels
  • (1) Wheel with 6 Rotatable Gobo's
  • All Gobo's are replaceable
  • Gobo Shake Effect
  • Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
  • Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel
  • Prism Wheel 1: Rotatable 6-facet Circular
  • Prism Wheel 2: Rotatable 5-facet Linear
  • Both Prisms are indexable
Frost Filters
  • Frost 1: Heavy frost for wash effect
  • Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX
Control
  • 3 DMX Channel Modes: 19/22/26
  • Color LCD display with 6-button function menu
  • Control Mode: DMX512 or internal programs
  • 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
  • 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
  • Selectable LED Refresh Rates (900 Hz~25K Hz)
  • 0-100% smooth dimming
  • Various strobe speeds
  • RDM (Remote Device Management)
  • With Wired Digital Communication Network
Pan/Tilt
  • Pan: 630 degrees
  • Tilt: 270 degrees

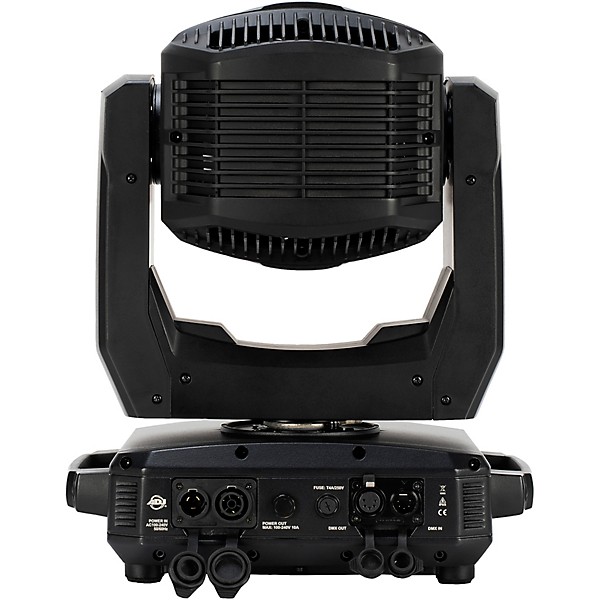

Connections
  • DMX Connections: 5-pin XLR In/Out
  • Power Connections: IP65 PowerLock In/Out to daisy chain power
Electrical
  • Multi-voltage operation: 90-240V, 50/60Hz
  • Max power consumption: 280W
Size and Weight
  • Dimensions (LxWxH): 9.49" x 14.57" x 19.21" (241x370x488mm)
  • Weight: 35.2lbs (16kg)
