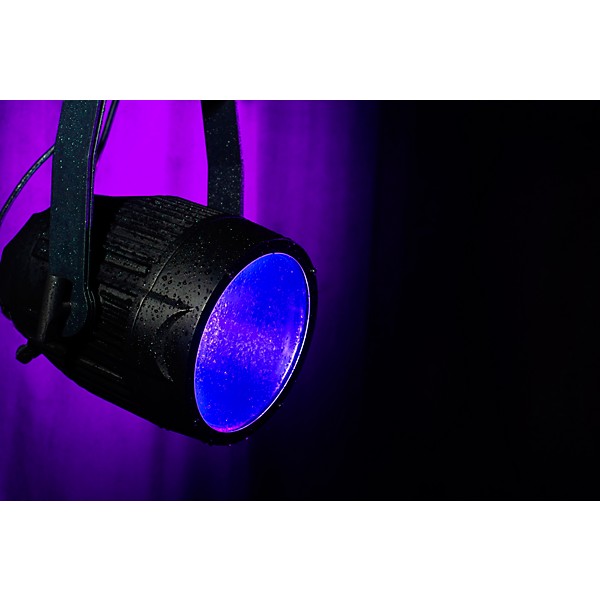

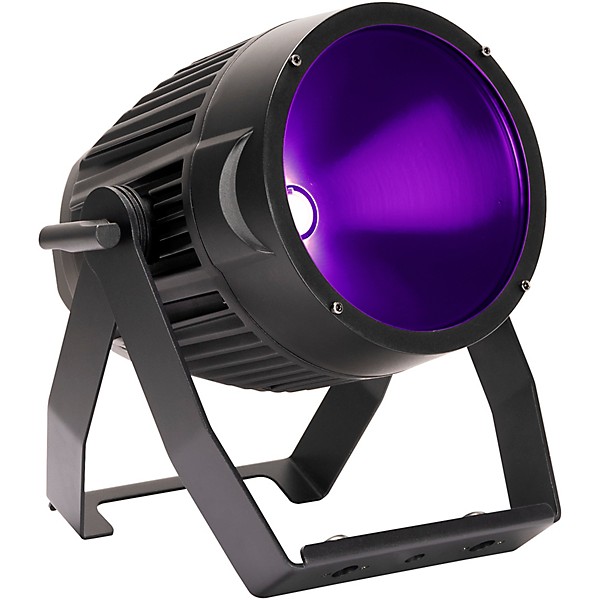

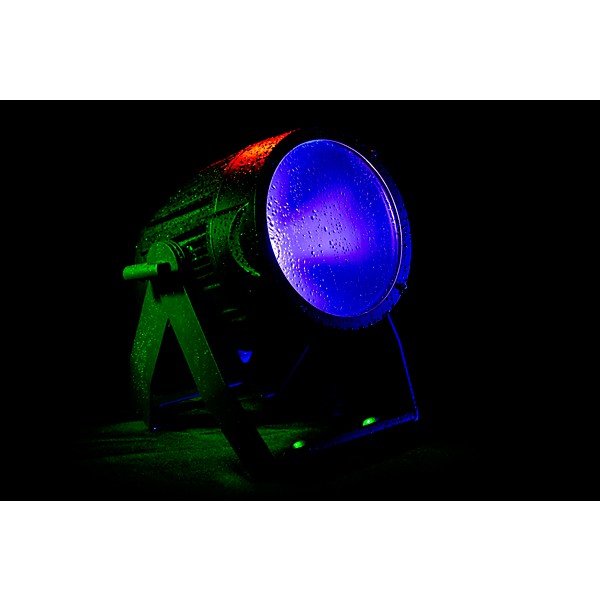

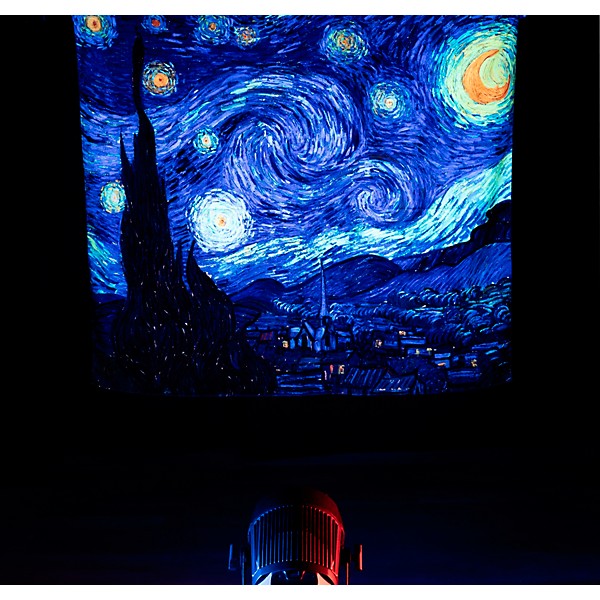

The American DJ UV Par 100IP delivers powerful UV lighting in a rugged, IP65-rated fixture. You get a 100W C.O.B. ultraviolet LED that produces a massive 120º beam angle in the 390-399nm wavelength range for vibrant, consistent UV output. Its robust construction protects against dust, sand, moisture and liquid—ideal for outdoor events and effects lighting. You have wireless control via the Aria X2 system, plus DMX and RDM protocols with multiple channel modes. Customize the output using six dim mode presets, four dim curves, dim speed control from 0.1-10 seconds and adjustable LED refresh rates from 900-25,000Hz. The intuitive OLED display with touch menu makes operation a breeze. This par fixture attaches securely with its durable scissor yoke and omega bracket receivers, ensuring proper aiming (bracket sold separately). With its bright output, versatile control and weatherproof housing, the UV Par 100IP delivers pro-grade UV lighting in any environment.

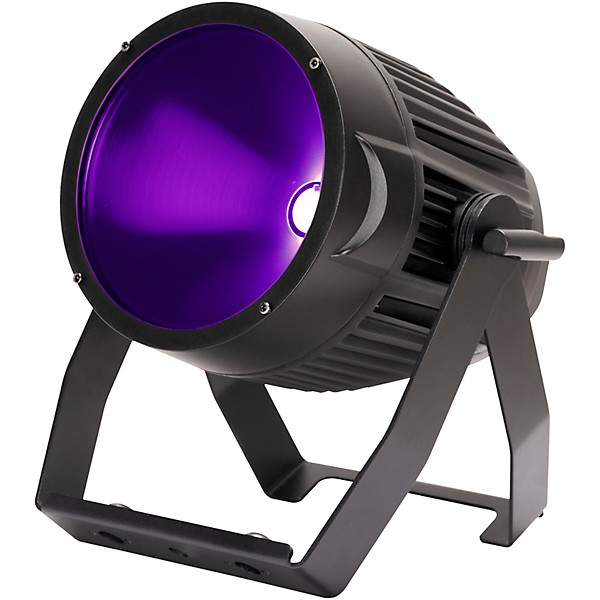

American DJ UV Par 100IP IP65 Rated Ultraviolet LED Fixture
American DJ UV Par 100IP IP65 Rated Ultraviolet LED Fixture
American DJ UV Par 100IP IP65 Rated Ultraviolet LED Fixture
warning

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

collapse expand iconSpecs

  • Control Protocol: DMX & RDM
  • DMX Modes: 4 (1, 2, 3, & 6 Channel Modes)
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Curves: 4 Presets (Square, Linear, Inverted Curve & S-Curve)
  • Dim Speed Control: 0.1~10 Seconds
  • Dimming: 0–100%
  • Strobe Control: Linear, Pulse, and Random
  • LED Refresh Rates: Adjustable from 900Hz–25kHz
  • Network: Wired Digital Communication

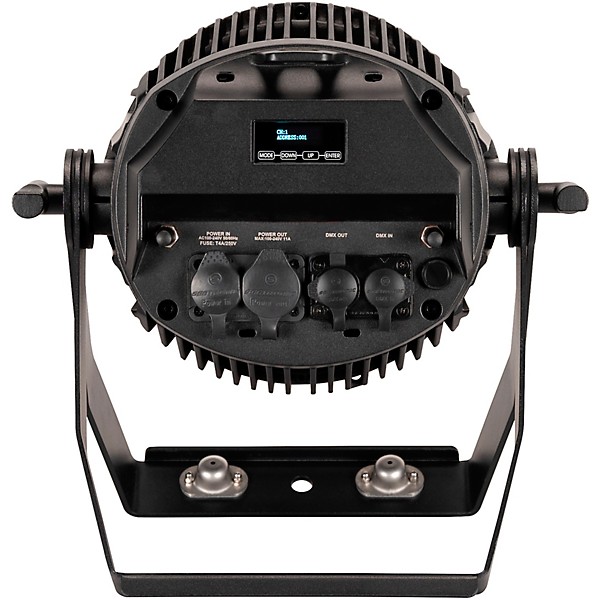

  • Display: OLED display with 4-button touch menu
  • Connections
    • Data Input: IP65 rated 5-pin DMX In/Out
    • Power Input: IP65 power locking In/Out (with protective rubber caps)
    Electrical
    • Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
    • Max Power Consumption: Not Specified
    Physical

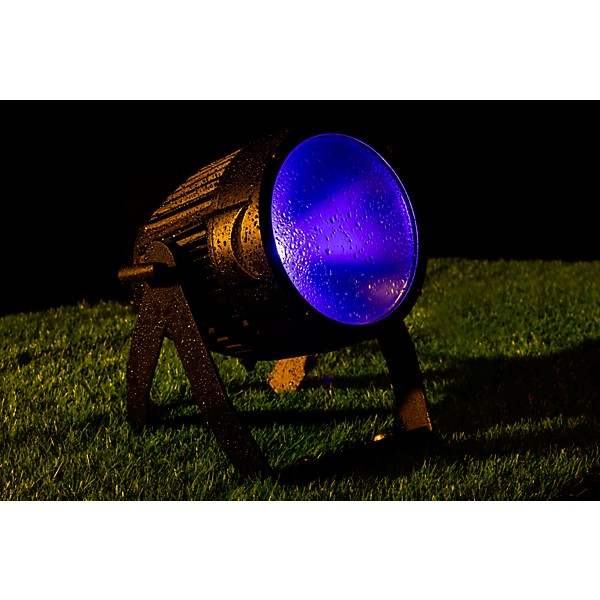

    • Outdoor Rated (IP65): Protection from dust, sand, moisture, and liquids (Dust Protection: 6, Water Protection: 5)
    • Note: IP65 data and power cables are required to maintain the IP65 outdoor rating

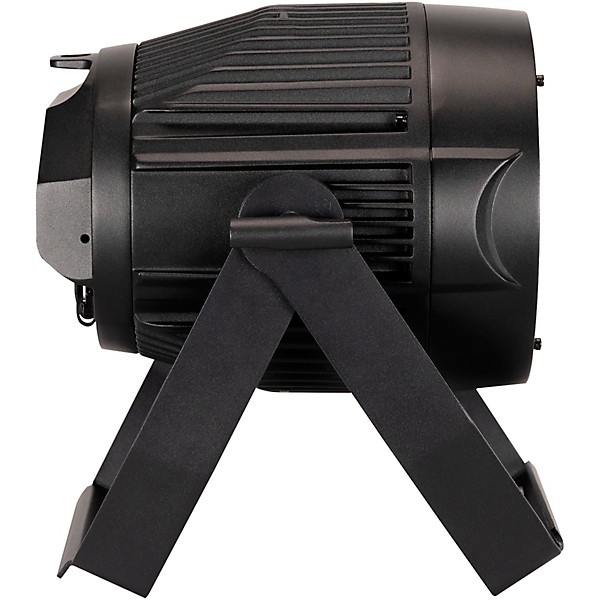

    • Includes Safety Cable Loop and scissor yoke with Omega bracket receivers (Omega Bracket sold separately)
    Dimensions/Weight
    • Length: 14.4" (367mm)
    • Width: 12.4" (316mm)
    • Height: 8.7" (111mm)
    • Weight: 14.11 lb. (6.4 kg)
    What's Included
    • 1x IP65, 6' locking power cable (1.83m)
    Approvals
    • cETLus (Control # 4010765)
    • CE Compliant
    • FCC Compliant
