The Barefoot Sound Footprint03C delivers the unparalleled precision essential for accurate mixes in surround sound and immersive audio environments. Designed as the center channel complement to the acclaimed Footprint03 monitors, this tri-amplified 3-way monitor ensures seamless tonal consistency when paired with the left and right channels. Forming a fully integrated and cohesive monitoring system that elevates any professional setup.

Advanced Driver Configuration for Exceptional Fidelity

At the core of the Footprint03C's innovation is its meticulously crafted driver configuration. A 1" ring radiator tweeter, a 3.5" aluminum cone midrange driver and two forward-facing 6.5" aluminum cone woofers work in harmony to reproduce every nuance with stunning accuracy and clarity. Backed by state-of-the-art magnet and motor systems, copper shorting rings and enhanced heat-sink technology, these drivers minimize distortion, support extended excursion and ensure reliable performance even under demanding conditions.

Sealed-Box Design Optimized for Center Channel Applications

The Footprint03C's sealed box design allows for a compact and shallow cabinet—perfect for positioning as the center channel in a multi-monitor array. Expertly crafted from medium-density fiberboard and coated in the iconic Footprint Gray polyester finish with its signature textured aesthetic, these cabinets uphold the exceptional standards synonymous with all Barefoot Sound monitors. Stress assembly techniques maximize stability and damping, ensuring optimal acoustic performance.

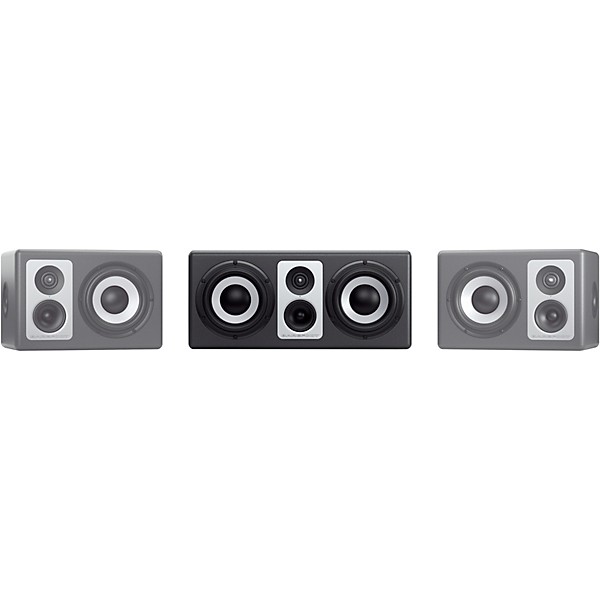

Seamless Integration With Footprint03 Monitors

Achieving the optimal multi-channel studio setup is effortless with the Footprint03C and Footprint03 monitors, thanks to their seamless integration with premium mounting solutions. You'll experience a truly cohesive and immersive monitoring environment, enabling you to balance critical elements like vocals, lead instruments and central audio content with precision and consistency across both film and music projects.

Innovative Technologies for Precise Monitoring

The Footprint03C incorporates Barefoot Sound's proprietary MEME Technology Voice Emulation and SPOC Technology, ensuring your mixes translate accurately across a wide range of playback systems. With features like a stepped input level attenuator and MEME voice select controls, you have the tools to dial in your monitoring environment with pinpoint accuracy, empowering you to create mixes that shine on any system.

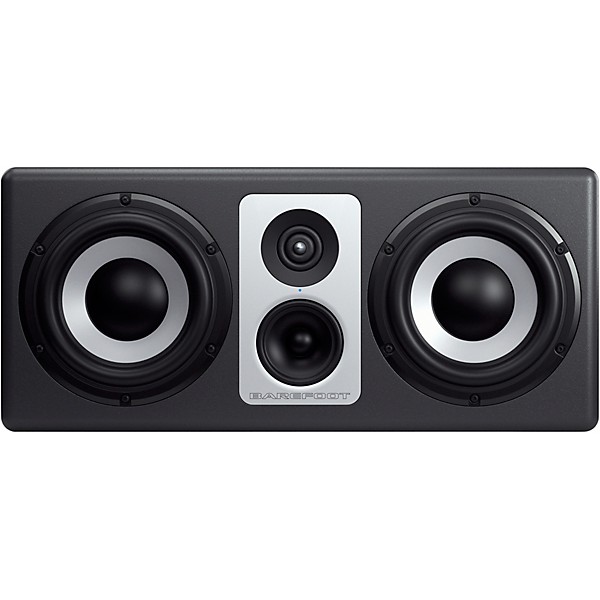

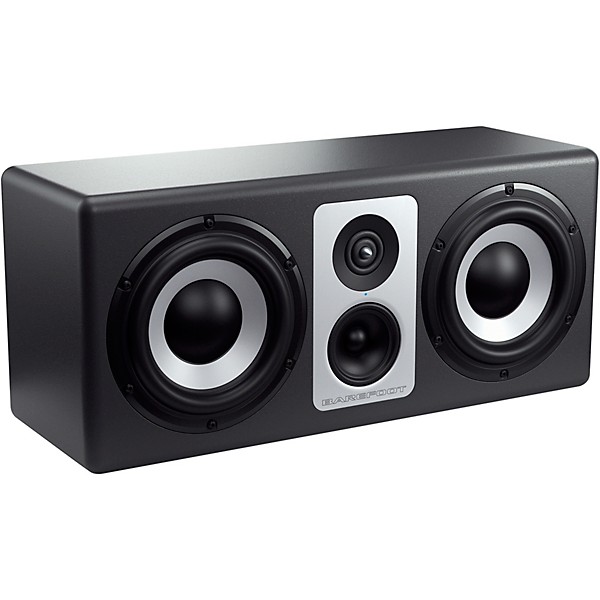

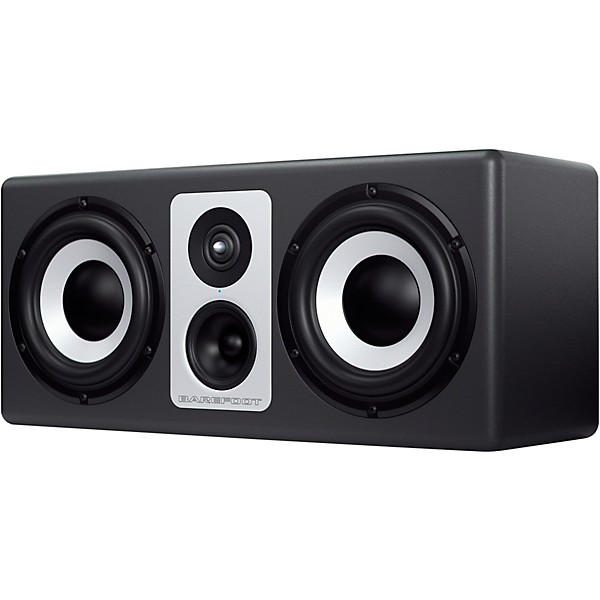

Barefoot Sound Footprint03C 3-Way Center Channel Active Studio Monitor (Each)
Barefoot Sound Footprint03C 3-Way Center Channel Active Studio Monitor (Each)
Barefoot Sound Footprint03C 3-Way Center Channel Active Studio Monitor (Each)

collapse expand iconFeatures

  • Triamplified 3-way center channel monitor
  • 260W of power per monitor
  • Frequency Response: 42Hz–40kHz
  • MAX SPL: Continuous 104.5dB
  • Sealed box speaker design
  • 6.5" aluminum cone woofers
  • 3.5" aluminum cone midrange
  • 1" ring radiator tweeter
  • MEME Technology Voice Emulation
  • SPOC Technology

collapse expand iconSpecs

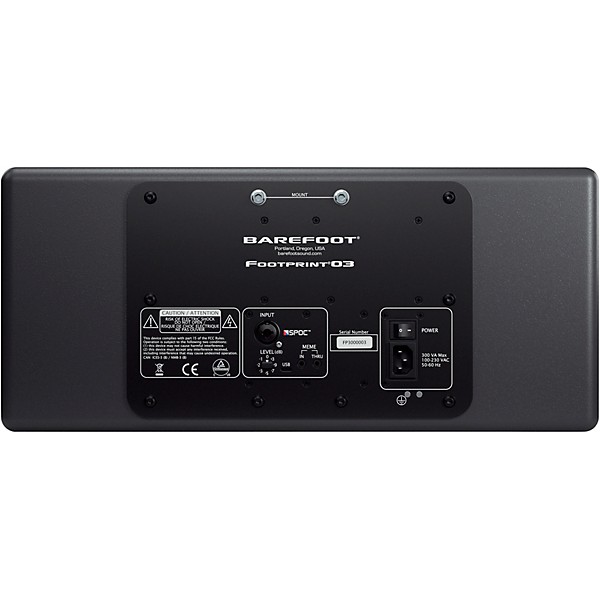

  • Controls: Input level stepped attenuator, MEME voice select
  • Analog Input
    • XLR female (Pin 1 ground, Pin 2 positive, Pin 3 negative)
    • TRS male (Tip: positive, Ring: negative, Sleeve: ground)
    • Input Impedance: 20 kohms
    • Input Sensitivity (1m): 90dB @ -15dBV (pass band)
    Analog to Digital Conversion
    • Word Length: 28-bit (56-bit High Precision)
    • Sample Rate: 96kHz
    • Signal/Noise: ≥100dB
    • Frequency Response: 42Hz–40kHz (+/-3dB), 48Hz–22kHz (+/-1dB)
    • Bass Response: -3dB @ 42Hz, Q = 0.707, Slope = 24dB/octave asymptotic
    • Max SPL: Continuous 104.5dB
    Cabinet
    • Internal Volume: 10.8 liters
    • Solid aluminum baffle plate
    • Polyurethane acoustic damping throughout
    • Crossover Frequencies: 400/3900Hz (active crossover between drivers)
    Drivers and Amplifiers
    • Tweeter: 1" ring radiator, low distortion motor, rear waveguide chamber, Amplifier: 60W
    • Midrange: 3.5" aluminum cone, low distortion motor, +/- 3.5 mm linear excursion, Amplifier: 100W
    • Woofers: 6.5" aluminum cone with low distortion motor, +/- 9.5 mm linear excursion, Amplifier: 100W
    • HF Amplifier: 60W
    • MF Amplifier: 100W
    • LF Amplifier: 100W
    Power
    • Mains Voltage Input: 85 VAC to 265 VAC universal
    • Idle Power Consumption: 12W
    • Maximum Power Consumption: 340W
    Weight
    • Speaker: 33 lb. (15 kg) each
    • Shipping: 40.3 lb. (18.3 kg) each
    • Dimensions: 20" x 7.25" x 9" (50.8 x 18.4 x 22.9 mm)
