Eliminator Lighting

collapse expand iconDescription

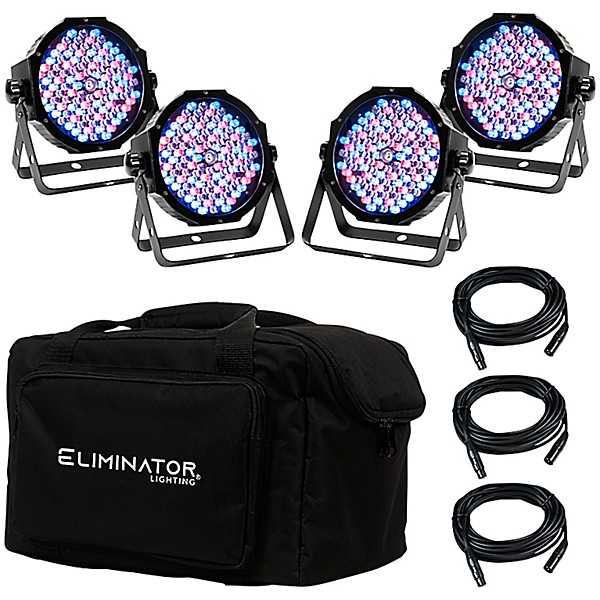

The Mega Flat PAK EP kit is an all-in-one lighting solution designed to elevate any event. This bundle includes four compact Mega Par Profile EP fixtures with vibrant RGB + UV output, three DMX cables for connecting fixtures, four IEC power cables and a protective carrying case—everything you need to create eye-catching uplighting, stage washing and wall washing effects. The slim Mega Par Profile EP lights are perfect for mobile DJs and entertainers thanks to their lightweight, portable design.

Smooth Color Mixing and Built-in Programs

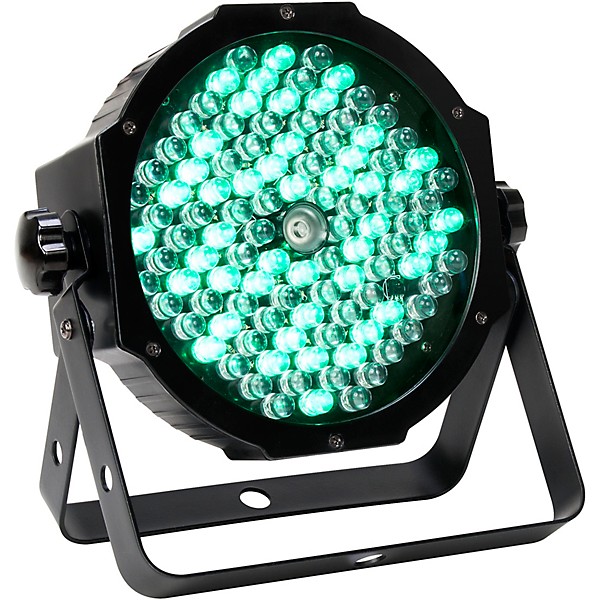

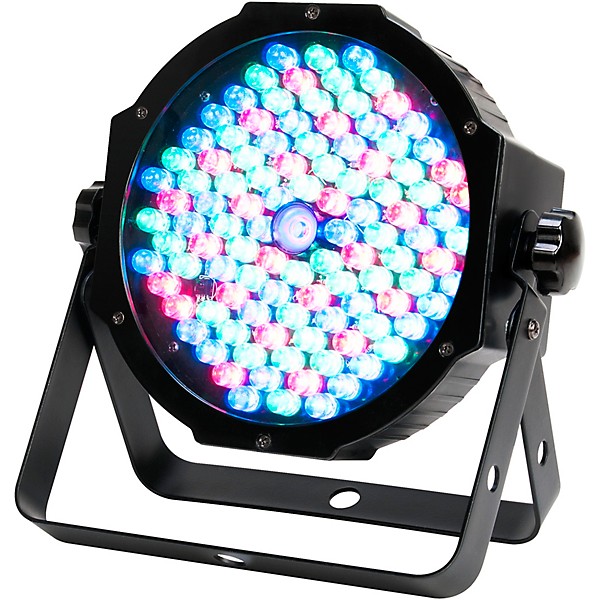

At the heart of each Mega Par Profile EP fixture is a 107x 10 mm LED array producing smooth color mixing for beautiful wash effects. Use the built-in color macros and programs to liven up any venue with color-changing and color-fading shows set to sound active or auto run modes. The inclusion of a UV LED adds excitement when combined with UV-reactive materials. Control options include DMX and master/slave configurations for synchronized looks.

Convenient All-in-One Package

The Mega Flat PAK EP takes the guesswork out of assembling an uplight kit. In one convenient bundle, you get four Mega Par Profile EP fixtures ready to connect out of the box, along with all the cables and accessories needed to start illuminating. The included soft carrying case with padded dividers provides safe transport and storage, while the lightweight par fixtures easily fit into the case along with cables and a small LED controller (sold separately).

Flexible Positioning for Any Event

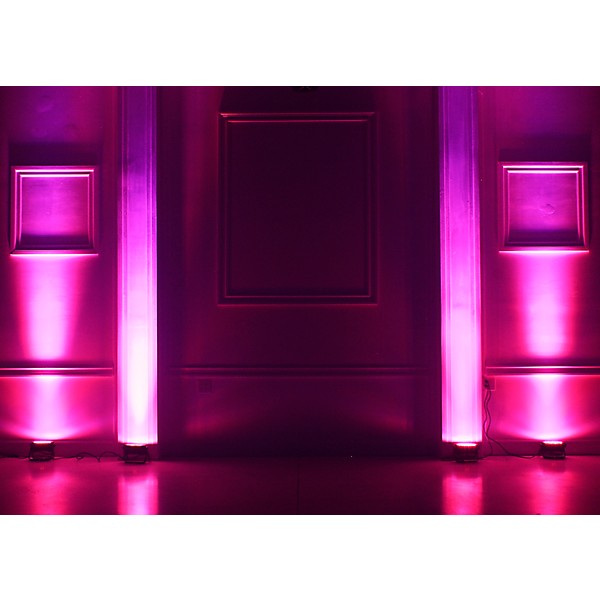

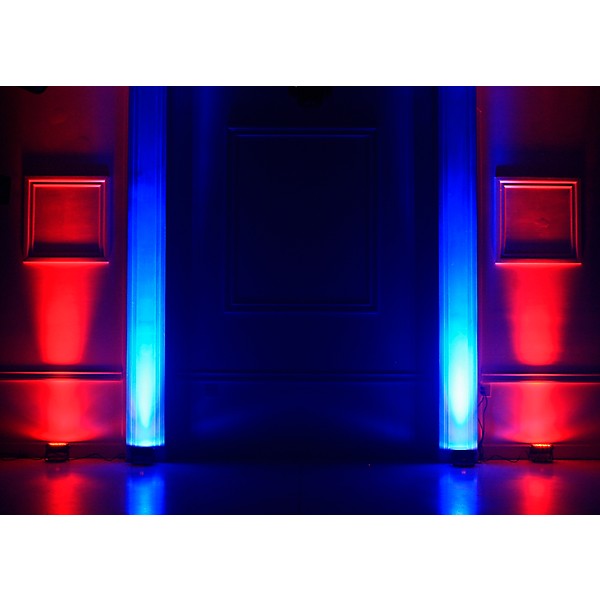

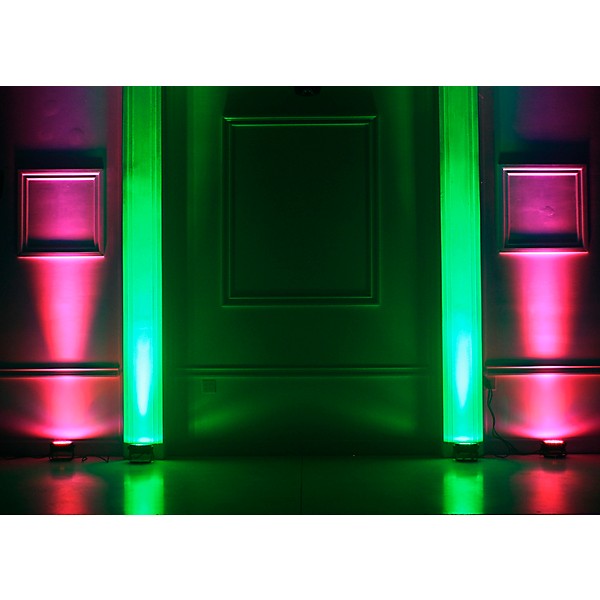

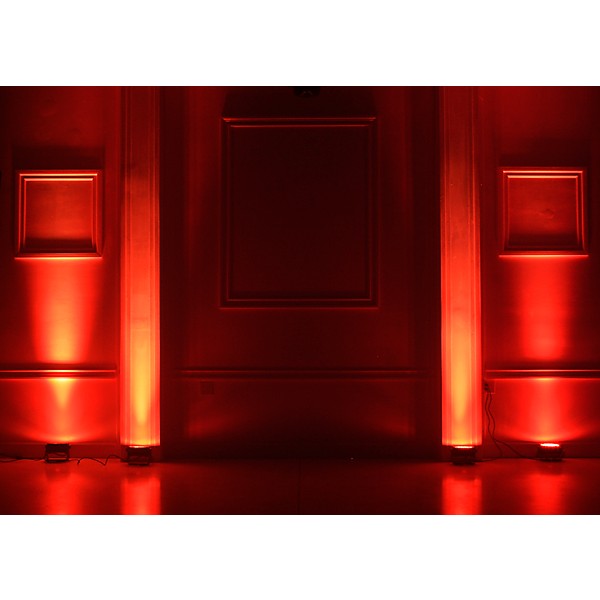

Each Mega Par Profile EP fixture includes a scissor yoke that allows for easy mounting on truss, walls or sitting on the ground. Tilt the fixture to aim the 30-degree beam where needed. Sideways input and output ports let you conveniently run cables even when sitting flat. Position the lights around a dance floor for uplighting, on stage as front wash or aimed at walls to transform any space into a dance club atmosphere.

Eliminator Lighting Mega Flat PAK EP 4 Pack with 4X Mega Profile EP Pars, 3X DMX Cables, and Soft Transport Bag
Eliminator Lighting Mega Flat PAK EP 4 Pack with 4X Mega Profile EP Pars, 3X DMX Cables, and Soft Transport Bag
Eliminator Lighting Mega Flat PAK EP 4 Pack with 4X Mega Profile EP Pars, 3X DMX Cables, and Soft Transport Bag

collapse expand iconFeatures

107x 10 mm LEDs (26 Red, 45 Green, 36 Blue LEDs) + 1 3W UV LED, 30-degree beam angle 5 DMX Channel modes: 4/5/6/9/10 channels, 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled 64 built-in Color Macros, Stand Alone or Primary/Secondary Configuration Multi-voltage Operation: AC 100 - 240V, 50/60Hz, Power Draw: 16W Max

collapse expand iconSpecs

Controls
  • 5 DMX Channel modes: 4/5/6/9/10 channels
  • 5 Operational modes: RGB+UV Dimmer Mode, Sound Active Mode, Auto Run Mode, Static Color Mode, & DMX Controlled
  • 16 Sound Active shows
  • 32 Built-in shows (16 Color Changing Shows & 16 Color Fading Shows)
  • 64 built-in Color Macros
  • Stand Alone or Primary/Secondary Configuration
  • 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
  • With Wired Digital Communication Network
  • Electronic Dimming: 0-100%
  • 4-button function display
Connections
  • 3-pin DMX In/Out

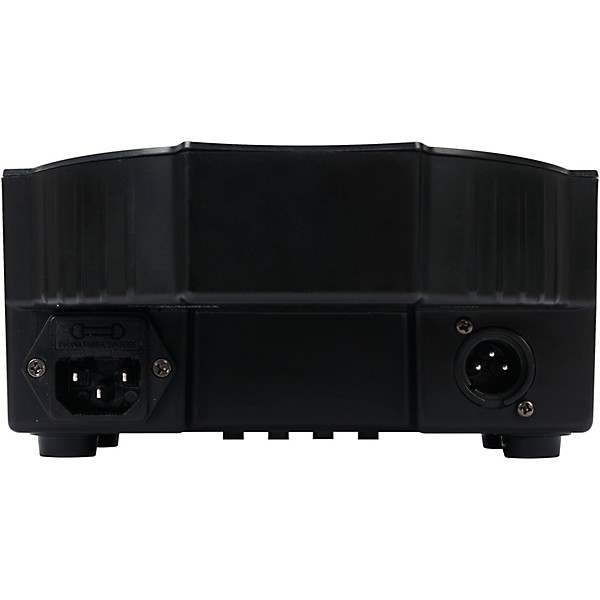

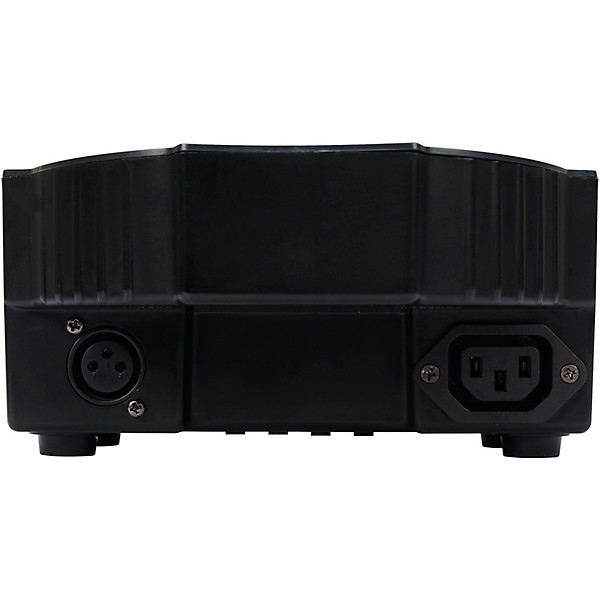

  • IEC AC IN/OUT on rear to daisy chain power (up to 33 @ 120V and 60 @ 230V)
Electrical
  • Multi-voltage Operation: AC 100 - 240V, 50/60Hz
  • Power Draw: 16W Max
Dimensions
  • 9”x 8.75”x 3.5”/ 225x220x85 mm
  • Weight: 3 lb./ 1.1 kg.
What’s Included
  • Includes scissor yoke to hang on truss, mount on a wall or set on the ground
  • Power cable length: 1.8 meter (IEC)
