The LD Systems ICOA PRO 15 A powered speaker delivers precision and power, thanks to its innovative coaxial design and high-performance 15ʺ loudspeaker. Built to meet the demands of professional audio applications, this speaker integrates a custom-engineered 15ʺ woofer with a 3ʺ voice coil and a 3ʺ titanium tweeter into a true point source. The result is exceptional coherence and timing accuracy, producing natural, detailed sound reproduction. Its rotatable, BEM-optimized horn ensures precise dispersion while providing horn loading for both the woofer and tweeter, enhancing sound wave bundling down to 500Hz. With airflow-optimized bass reflex ports, the ICOA PRO 15 A delivers tight, impactful low-end down to 50Hz, making it ideal for live events, club gigs, and installations that demand powerful sound.

Application Presets for Precision Control

Designed for professionals seeking reliable, high-quality audio, the ICOA PRO 15 A powered speaker combines cutting-edge technology with user-friendly features. With a powerful Class-D amplifier delivering up to 1500W RMS (3000W peak) and a max SPL of 135dB, this speaker is built to handle high-output environments without distortion. The modern SysCore DSP ensures clarity and punch through advanced limiters and FIR/IIR filters, while two line/mic input channels and an XLR mix output enable flexible connectivity. Four application presets, including a low-latency monitor mode and a parametric 4-band EQ provide customization for diverse setups. Shop now to bring professional-grade sound to your next performance or installation.

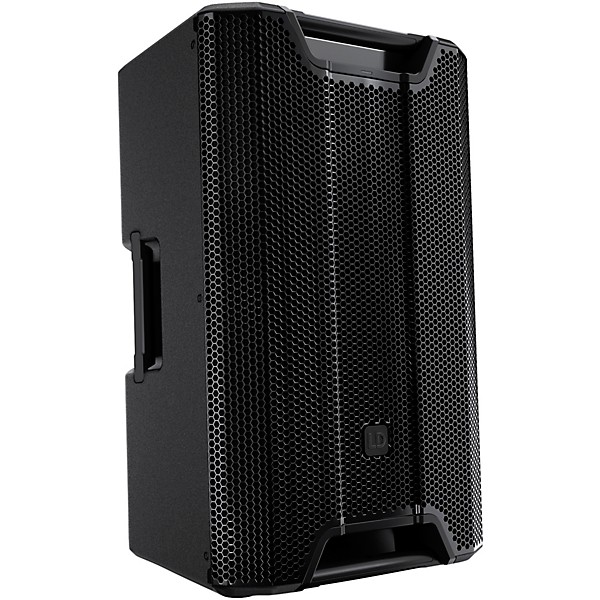

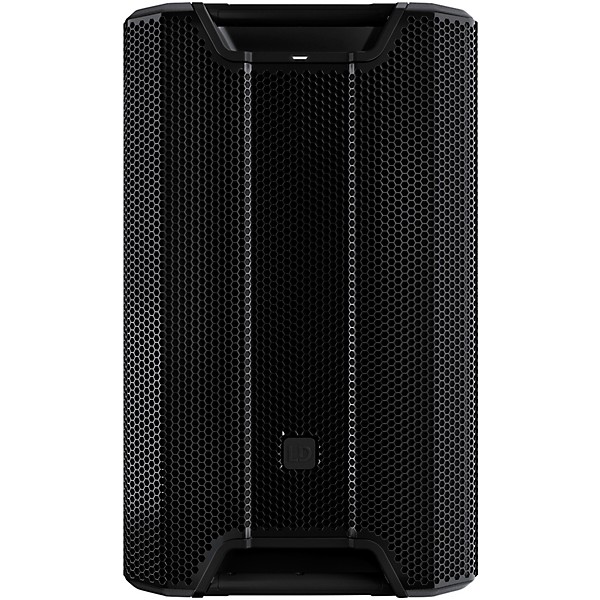

LD Systems ICOA PRO 15 A 15" Powered Speaker
LD Systems ICOA PRO 15 A 15" Powered Speaker
LD Systems ICOA PRO 15 A 15" Powered Speaker

collapse expand iconFeatures

  • Coaxial design delivers natural and detailed sound reproduction

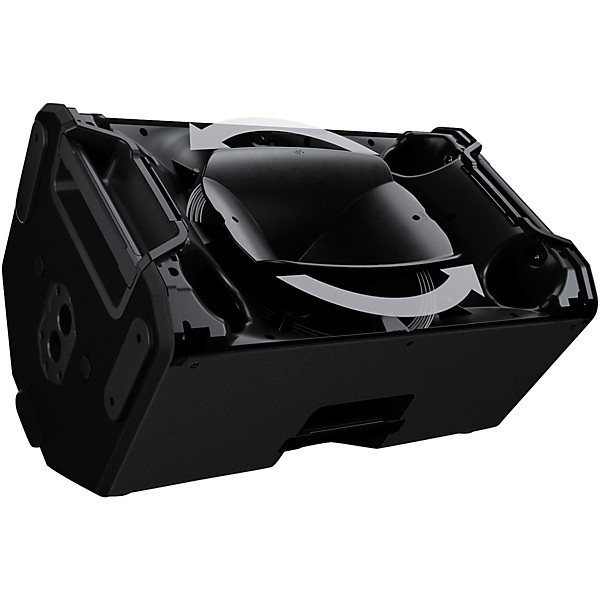

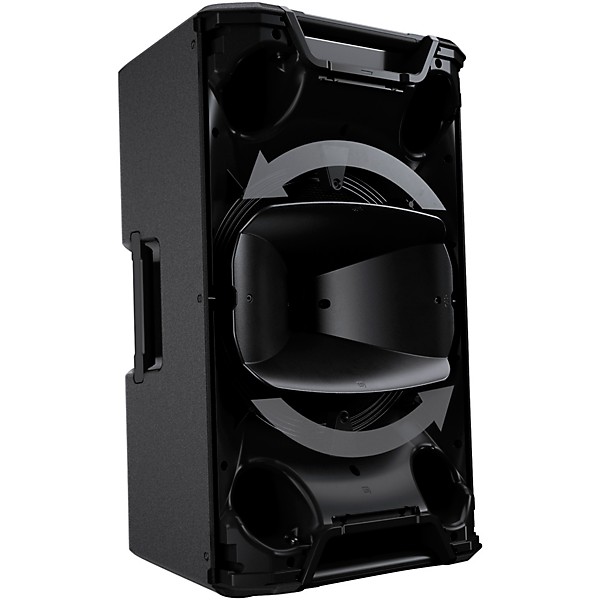

  • Rotatable BEM-optimised horn ensures precise sound dispersion
  • Airflow-optimised bass reflex ports provide solid low-end down to 50 Hz
  • Class-D amplifier delivers 1500 W RMS and 135 dB max SPL
  • SysCore DSP ensures distortion-free sound with maximum clarity
  • Four application presets offer versatile sound customization options
  • Dual horn loading directs sound energy in acoustically demanding spaces
  • Two line mic input channels allow connection of various signal sources
  • XLR mix output enables seamless signal forwarding to other devices
  • Parametric 4-band EQs enable precise tonal adjustments for every performance

collapse expand iconSpecs

Performance
  • Amplifier type: Class-D
  • Power output: 1500W RMS
  • Peak power: 3000W
  • Maximum SPL: 135dB
  • Frequency response: Down to 50Hz
  • DSP technology: SysCore DSP with FIR/IIR filters

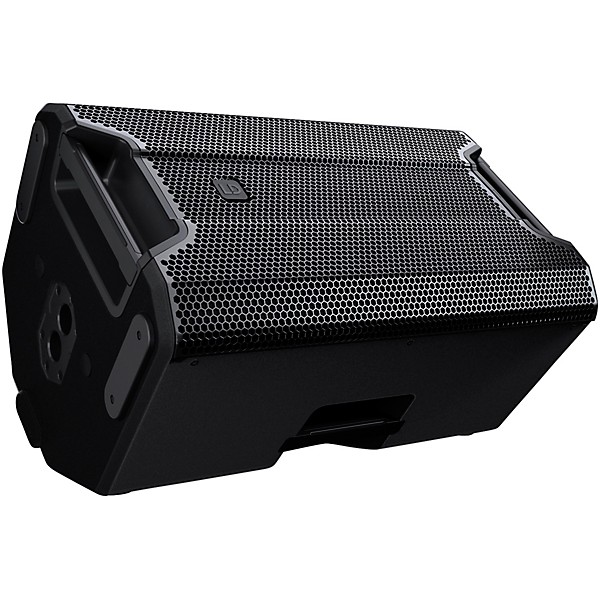

  • Application presets: Four including low-latency monitor
Speaker design
  • Woofer size: 15"
  • Tweeter type: 3" titanium tweeter
  • Horn type: Rotatable BEM-optimized
  • Coaxial system: True point source design
  • Bass reflex ports: Airflow optimized
  • Voice coil size: 3"
  • Sound wave bundling: Accurate down to 500Hz
Connectivity

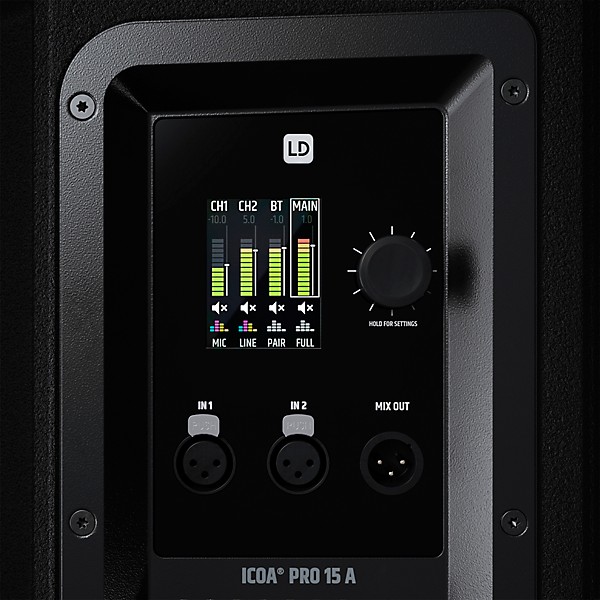

  • Inputs: Two line/mic input channels
  • Output: XLR mix output
  • EQ options: Parametric 4-band EQ for input and master channels
