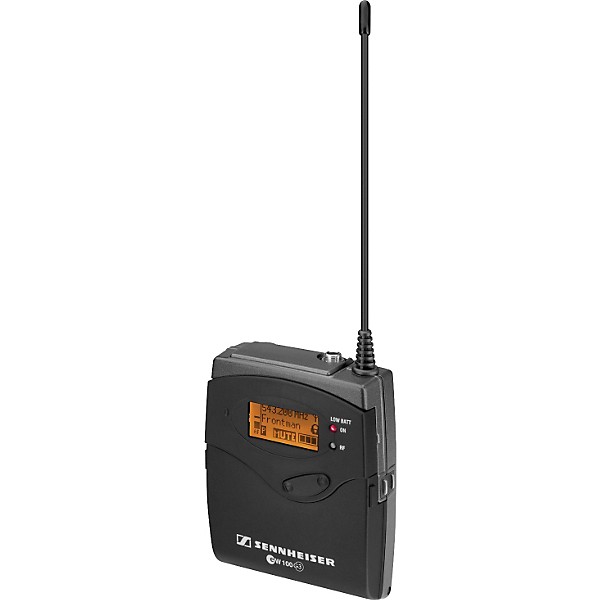

The Sennheiser EK 100 G3 Compact Wireless Receiver demonstrates that portable components work easiest when you do not have to think about them. The EK 100 receiver's adaptive-diversity technology provides excellent reception at all times. This Sennheiser wireless receiver is designed to securely attach to a camera's shoe using a clamp mount. The EK 100 G3 also synchronizes to a Sennheiser G3 transmitter with a simple push of a button. The unit is compatible with the optional DC 2 external adapter for extended use without batteries where a 12VDC source is available.
Open Box Sennheiser EK 100 G3 Compact Wireless Receiver Level 1 Band A

collapse expand iconFeatures

  • Sturdy metal housing
  • 42MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • Adaptive-diversity reception for high reception quality
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Wireless synchronization of transmitters via infrared interface
  • User-friendly menu operation with more control options
  • Illuminated graphic display
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Receiver features battery indication in 4 steps
  • Contacts for recharging BA 2015 accupack directly in the receiver
  • Wide range of accessories adapts the system to any requirement
  • Includes:
  • EK 100 G3 diversity receiver
  • CA 2 camera adapter
  • CL 1 jack cable
  • CL 100 XLR cable
  • 2 "AA" batteries

collapse expand iconSpecs

  • RF frequency range: 516-865MHz
  • Carrier frequency: 1,680
  • Presets: 12
  • Switching bandwidth: 42MHz
  • Signal-to-noise-ratio: > 110dB(A)
  • Frequency response: 25-18,000Hz
  • Audio output power: 12mW (32Ohms)
  • XLR connector: 3.5mm jack
  • Operating voltage (mains): 2x 1.5V AA
  • Operating time: 6-10 hrs.
  • Dimensions: 3.2"W x 2.5"H x 0.9D or 82mm x 64mm x 24mm
  • Weight: 5.6 oz. (160g)

Featured Articles

collapse expand iconReviews

5

1 Reviews

0%

of respondents would recommend this to a friend

Reviewed by 1 customers

  • Sennheiser goes the distance

    5

    submitted13 years ago

    byEdward Fortner

    fromTacoma, Washington

    I own two complete sets ie: mic transmitter, lapel mic transmitter and receiver and a third receiver. These are top quality pieces of sound gear. The mic transmitter has a range of 300-500ft, I use it to talk to my receivers which are connected to amp'd speakers. No more laying power cords and audio cable. The transmitter receiver sets give you good quality sound for a full 8 hours on 2 'AA' batteries. Couldn't ask for better. Whether you are inside or outside it makes the setup and breakdown so much esier.
