collapse expand iconDescription

Don’t let the classic analog mixer design fool you—the StudioLive AR16c was built to record. Featuring a pristine analog front end with 12 high-gain XMAX-L mic preamps and an 18x4, 24-bit/96kHz, USB-C-compatible USB 2.0 audio interface, the StudioLive AR16c’s hybrid design makes it simple to mix and record.

Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth connectivity and a stereo SD recorder ... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.

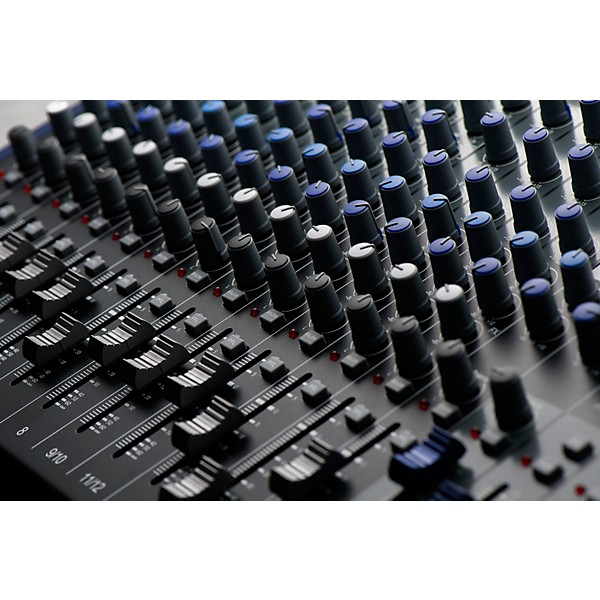

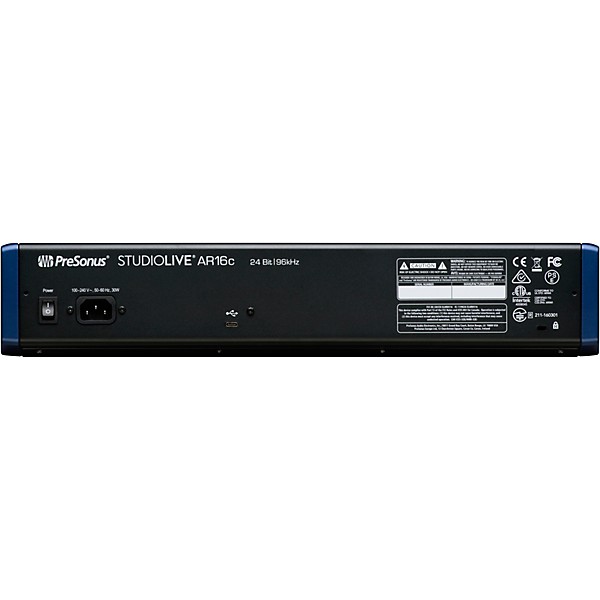

PreSonus StudioLive AR16c 16-Channel Hybrid Digital/Analog Performance Mixer
PreSonus StudioLive AR16c 16-Channel Hybrid Digital/Analog Performance Mixer
PreSonus StudioLive AR16c 16-Channel Hybrid Digital/Analog Performance Mixer

collapse expand iconSpecs

  • 18x4 24-bit/96kHz, USB 2.0 (over USB-C connection) audio recording interface; record every channel, plus the main mix
  • 2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32GB
    • 18-channel analog mixer with:
    • 12 balanced microphone inputs with XMAX-L mic preamps including:
    • 2 instrument/line inputs
    • 6 balanced mono line inputs
    • 4 pairs of balanced stereo line inputs
    • 2 insert points (channels 1 and 2)
    • Stereo Super Channel (Ch. 17/18) with Bluetooth 5.0 input, RCA inputs, 1/8" stereo input, and switchable SD/USB stereo playback
    • 8 mono and 4 stereo channels, each with level knob, pan, mute, PFL solo, high-pass filter and 3-band semi-parametric EQ
    • Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
    • 2 monitor buses with dedicated channel sends, AFL solo and balanced TRS output
    • Mic/line boost for low-level input sources and consumer devices
    • XLR Main outputs
    • L/R Control Room outputs and headphone output with dedicated level controls
    • Global +48V phantom power
    • Complete recording solution: Includes Capture live-recording software and Studio One Artist DAW for Mac and Windows
    • Internal power supply
    • Rackmount kit included, optional carrying backpack available (sold separately)

    collapse expand iconWarranty

    One year parts and labor warranty.

    Featured Articles

    collapse expand iconReviews

    3

    3 Reviews

    67%

    of respondents would recommend this to a friend

    a pleasant update
    Filters
    Best Uses
    1. Amateur Recording3
    2. Performances3
    3. Professional Recording3
    4. Outdoor Events / Games2
    5. Music Videos1
    Cons
    1. Difficult To Use1
    2. Limited Functions1
    3. Not Durable1
    4. Poor Quality Sound1
    Describe Yourself
    1. Experienced3
    Pros
    1. Compact3
    2. Easy To Use2
    3. Simple Controls2
    4. Excellent Sound1
    5. Versatile1

    Reviewed by 3 customers

    • Buy new or have unit fully tested before ship

      1

      submitted4 years ago

      byStephen p

      fromVa Beach, va

      Arrived work for 5min n back in return box it went.

    • a pleasant update

      4

      submitted5 years ago

      byzahmbee

      fromnasty old Detroit

      I use this mixer in my home studio and it works great. The previous version of the StudioLive was plagued with issues. Mine developed an audio issue in the USB. It was only 15 months old. Presonus is not very strong on standing behind their product. I could not believe that they wanted $200 to fix my StudioLive AR22. It did work very well but did not last long. Presonus is the only one in the game at this price point. They have excellent software with their Studio One 5 recording package. It amazes me how a company can be so strong in the software and recording process but drop the ball on hardware quality.

    • It's pretty good

      4

      submitted5 years ago

      byLex Machina

      fromFredericksburg, VA

      I am coming from a Digidesign Digi 003 ProTools workspace. I got tired of the dongle and insular ecosystem disallowing the interface to be used w/other DAWs and decided to give PreSonus and Studio One a try. It's been ok so far. Disappointed to learn that I have to upgrade to the pro version of the DAW in order to use the mastering software. I am doing my first recordings as I type this. I'm sure I'll uncover this systems strengths in time.

    • Previous
    • 1
    • Next

    collapse expand iconQ&A

    Have a question about this product? Our expert Gear Advisers have the answers.

    • submitted4 months ago

      asked byKiffer

      fromPalatine IL

      Can you save mixes and pull up at the next gig?

      Can you save mixes and pull up at the next gig?

      Open Reply - Gear-Support
      The PreSonus StudioLive AR16c is a hybrid analog/digital mixer, and while it does include digital features, it does not have full mix recall like a digital mixer (e.g., the PreSonus StudioLive Series III or a Behringer X32).

    • submitted2 years ago

      asked byRodney

      fromundisclosed

      What's in the box when I purchase?

      What's in the box when I purchase?

      Open Reply - Gear-Support
      The box will include the power cord and rack ears.

    • submitted5 years ago

      asked byPakal

      fromLos Angeles

      I'm interested in prosonus live digital mixer 16 tracks, does it qualify for 24 month financing with my Gear Card?

      I'm interested in prosonus live digital mixer 16 tracks, does it qualify for 24 month financing with my Gear Card?

      Open Reply - Beau
      This mixer does qualify for interest free financing when you use the Gear card.
