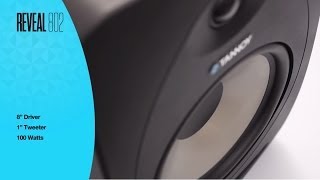

Tannoy Reveal 802

Tannoy Reveal 802 Videoplay button

Tannoy Reveal 802 Video

Tannoy

collapse expand iconDescription

The Tannoy Reveal 802 powered studio monitor brings legendary Tannoy sound quality to your personal studio. With the 8" woofer and 1" tweeter powered by a 100W bi-amplified module, the Reveal 802 delivers rock-solid bass response at any volume. It is engineered for a wide sweet spot so you can move around your workspace without losing stereo imaging—perfect for collaborating during mixing sessions.

Powerful Low End With Custom 8" Woofer

When mixing bass-heavy music, the Reveal 802 has you covered. The custom 8" woofer provides incredibly accurate low end so you hear exactly what's happening in your mixes. Combined with the bi-amp's 100 watts of power, you'll get authoritative bass at any listening level. The integrated amplifier is perfectly matched for maximum efficiency without needing an external amp.

Retain Imaging With Precisely Tuned Crossover

Custom-tuned by Tannoy's loudspeaker expert Dr. Paul Mills, the active crossover filters in the Reveal 802 have impeccable timing. This gives you a massive sweet spot so you and your collaborators can move around without losing the stereo imaging of your mix.

Instant Stereo Setup With Included AUX Cable

Connecting the Reveal 802 monitors is easy with the included aux cable. Simply plug it into your audio player to instantly link both speakers for a stereo monitoring system. No extra interfaces needed for enjoying music or honing your mix.

Refined Controls for Dialing in Your Sound

The rear panel puts essential controls at your fingertips. Independent gain adjustments allow precision tuning for your room's acoustics. The HF trim knob lets you tweak the high-frequency response to your taste. With 67 years of loudspeaker expertise built-in, the Reveal 802 brings legendary sound to your personal studio.

Tannoy Reveal 802 8" Powered Studio Monitor (Each)
Tannoy Reveal 802 8" Powered Studio Monitor (Each)
Tannoy Reveal 802 8" Powered Studio Monitor (Each)

collapse expand iconFeatures

General
  • Size: Near-field
  • System type: Active
  • Configuration: 2-way
Drivers
  • Low-frequency driver: 8"
  • Mid-frequency driver: Not applicable
  • High-frequency driver: 1"
  • Full-range driver: Not applicable
  • Driver type: Info not available
Sound
  • Frequency response: 42Hz–43kHz
  • Max peak SPL: 114dB
  • Amplifier class: Info not available
  • Output power: 100W
Onboard Features
  • Input connectors: XLR, TRS, 1/8"
  • Standby mode: No
  • Acoustic space control: No
  • Power indicator: Yes
Other
  • Width: 10.0"
  • Height: 15.4"
  • Depth: 11.8"
  • Weight: Info not available
  • Enclosure type: Ported

collapse expand iconSpecs

Frequency Response: 42Hz - 43kHz
Max SPL: 114dB

HxWxD Cabinet Dimensions:
15.35" x 10.00" x 11.81"
390mm x 254mm x 300 mm

Membrane Sizes:
Drive Unit Size, LF/Mid Range: 8" (200mm)
Drive Unit Size, HF: 1" (25mm) Soft Dome

Bi-amp Output Power, RMS
LF/Mid Range: 75 Watts
HF: 25 Watts
THD: < 0.4 %

Input Types and Impedances
Balanced: XLR, 20kOhm
Unbalanced: 1/4" Jack, 10kOhm
AUX Link: 1/8" Jack, 10kOhm

Output
AUX Link:1/8" Jack

EQ Options
Neutral HF Setting
+/-1.5dB HF Boost/CUT
Crossover Frequency: 1.8kHz

Switchable Power Supply Compatibility:
100-120V or 200-240V (50 - 60Hz)

Max Power Consumption: 240 Watts
Low Frequency Alignment: Optimized Front Port

Fuse Data
100 - 120V: T2AL / 250V
200 - 240V: T1AL / 250V

collapse expand iconWarranty

WARRANTY STATEMENT

No maintenance of Tannoy products is necessary.

All of our products have been produced and tested with care and precision to give first-class service.

All passive components are guaranteed for a period of five years from the date of purchase from an authorised Tannoy dealer subject to the absence or evidence of misuse, overload, or accidental damage.

All active and electronic components are guaranteed for a period of one year from the date of purchase from an authorised Tannoy dealer subject to the absence of, or evidence of, misuse, overload or accidental damage.

If at any time during this warranty period the equipment proves to be defective for any reason other than accident, misuse, neglect, unauthorised modification or fair wear and tear, we will repair any such manufacturing defect or, at our option, replace it without charge for labour, parts or return carriage.

If you suspect a problem with a Tannoy product then, in the first instance, discuss it with your Tannoy dealer. If you require further assistance then we ask that you deal directly with your local Tannoy distributor.

Featured Articles

collapse expand iconReviews

5

7 Reviews

100%

of respondents would recommend this to a friend

Filters
Best Uses
  1. Home Studio2
  2. Professional Recording1
Describe Yourself
  1. Experienced2
Pros
  1. Easy To Use2
  2. Good Audio2
  3. Durable1
  4. Lightweight1
  5. Versatile1
  • Solid

    5

    Verified BuyerVerified Buyer

    submitted8 years ago

    byGreg P.

    fromSpokane Valley WA

    Good overall sound quality. Using as monitors for a home dj setup.....practice area. Gets loud with detail included. bass and mids hit pretty hard while the hi range is clear and audible..

  • Great purchase

    5

    Verified BuyerVerified Buyer

    submitted8 years ago

    byChristopher

    fromundisclosed

    Sounds incredible

  • Very Nice

    5

    Verified BuyerVerified Buyer

    submitted9 years ago

    byGravy

    fromUSA

    In a nutshell the 802's have a linear response but with extended bass frequency. They work great for metal where palm muting chugs (even with standard tuning) can get into these lows where smaller monitors drop off too soon leaving you to mix in the dark with frustrating results. The tight bass response also draws a clear cut line where guitar should stop and bass begins allowing you to get rid of guitar frequencies that muddy your mix, again something smaller monitors just can't do as well if at all. With my acoustics the high boost works perfectly. These monitors are like a microscope that allow me to adjust nuances that translate very well to the car stereo, headphones, etc., that my previous Presonus monitors failed to do despite the EQ function.

  • Fabulously clear speakers. I bought 2

    5

    Verified BuyerVerified Buyer

    submitted9 years ago

    bySpud

    fromMA

    I use this mainly for recording but I listen to music through them too

  • These monitors rock my world and make me a better producer!

    5

    submitted11 years ago

    byPaul

    fromLos Angeles, CA

    I?m a touring musician in the band Krooked Treez, and multi-genre-producer, so sound quality is always most important to me on all levels. I play, produce, and mix rock, hip-hop, reggae, dub step, electro, pop, and everything in-between. It?s important for me to get an accurate mix of a song fairly quickly. The Tannoy Reveal 802 studio monitors have really impressed me and rise above all other competing monitors in its? class. In any genre, the monitors produce a balanced, bright, colorful sound, while still pounding with powerful bass, but not getting muddy in the lower frequencies. The front-ported enclosure allows the sound to vent and travel properly, and also allows you to set the monitors back against the wall without any loss of sound quality. Sitting in the carefully designed sweet spot gives me the true character of the music I?m hearing. These definitely have changed the way I work with music! A great feature that the Reveal 802?s have is the 1/8? audio cable that plugs directly into the back of one of the monitors, and they?re linked together by another audio cable. I can conveniently plug in my iPhone, iPad, or Macbook Pro for a quick reference of a song to compare my mix to, or just bang some music while I?m working on something else. I put on my favorite playlist and they rock my studio! The Reveal 802's have a very sleek, modern look/design, with very durable materials making them feel very solid, without being too heavy. I also like the cool blue lights that set the mood behind the monitors! They come equipped with a soft foam pad on the bottom to buffer the space between the monitor and the surface they sit on. This makes for a very clean output, avoiding vibrations or buzzing from underneath. All monitors should have this feature! These monitors have multiple uses in my studio. I run them from protools/reason, or I can plug in my iPad with the 1/8? cable and write a song with garage band or make a beat with the iMPC app, just to name a few. I even plug my Roland Fantom G6 workstation directly into the monitors when I want to work out some sounds, or even produce using the Fantom?s DAW. Regardless of what I plug into the Reveal 802?s, I get rich, high quality sound! Musicians and producers rejoice, and trust Tannoy! I do!

  • Excellent value in a mid-priced monitor

    5

    submitted11 years ago

    byMike

    fromSanta Rosa, CA.

    Imaging is good. Bottom is tight. Didn't think an 8" woofer would have this much bass. Bass is not exaggerated though. Seems well balanced. Highs are silky and not harsh. Happy with the purchase.
