The MXL 770 is a true phantom-powered, condenser microphone with a 6-micron, 20-mm. gold-sputtered diaphragm, the MXL 770 delivers a silky up-front high end and a solid low frequency sound. The MXL 770 has a high quality FET preamp and its output is balanced with a wide dynamic range. The MXL 770 is perfectly suited for digital and analog recording.

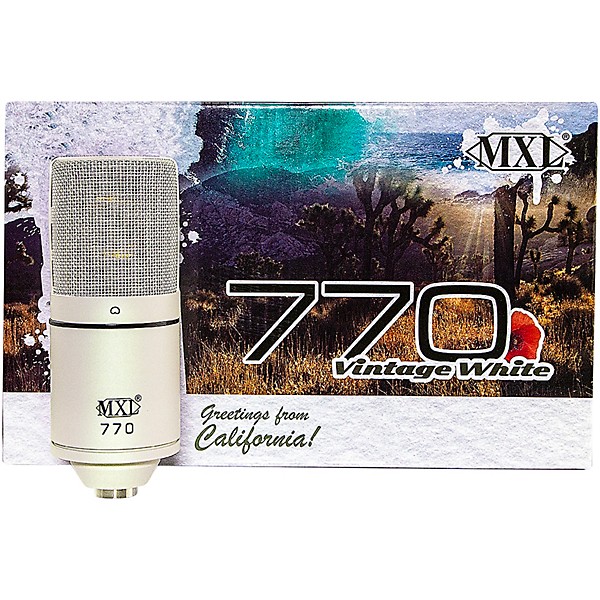

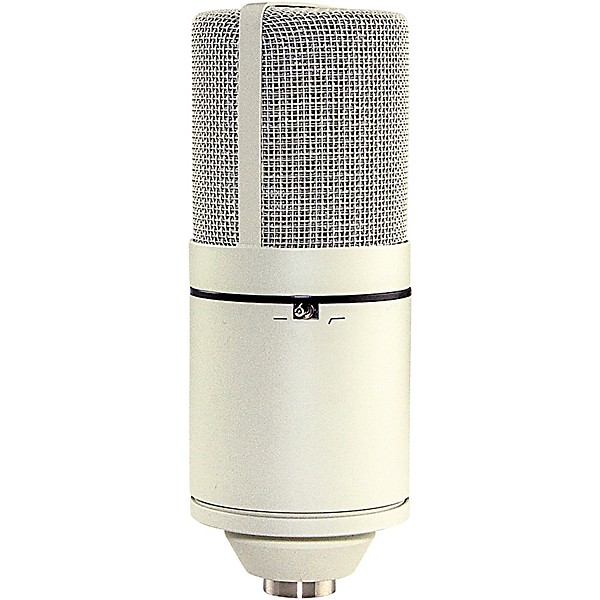

MXL MXL 770 Condenser Microphone Vintage White
MXL MXL 770 Condenser Microphone Vintage White
MXL MXL 770 Condenser Microphone Vintage White
warning

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer, and Lead, which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

collapse expand iconSpecs

  • Size: 60mm — 154mm
  • Attenuator Switch : 0/-10dB
  • Equivalent Noise Level: 18dB (A weighted IEC 268-4)
  • Frequency Range: 30Hz-20kHz
  • High Pass Filter : 6dB/octave, 150HZ
  • Impedance: 200W
  • Max SPL for 0.5% THD: 134dB
  • Metal Finish: Black
  • Polar Pattern: Cardioid
  • Power Requirements: Phantom Power 48V ±4V
  • S/N Ratio: 80dB (Ref. 1Pa A-weighted)
  • Sensitivity: 10mV/Pa
  • Size: 60mm — 154mm
  • Type : Condenser pressure gradient mic with large 22 mm. diaphragm
  • Weight: 420g
  • Equivalent Noise Level: 18dB (A weighted IEC 268-4)
  • Metal Finish: Black
  • Sensitivity: 10mV/Pa
  • Polar Pattern: Cardioid
  • Impedance: 200W
  • Type : Condenser pressure gradient mic with large 22 mm. diaphragm
  • S/N Ratio: 80dB (Ref. 1Pa A-weighted)
  • Frequency Range: 30Hz-20kHz
  • Max SPL for 0.5% THD: 134dB
  • Power Requirements: Phantom Power 48V ±4V
  • Weight: 420g

collapse expand iconWarranty

3 year parts and labor warranty. (MXL990 and MXL991 have a 1 Year Parts and Labor Warranty)
